Our Products
Professional Solar BOS Components

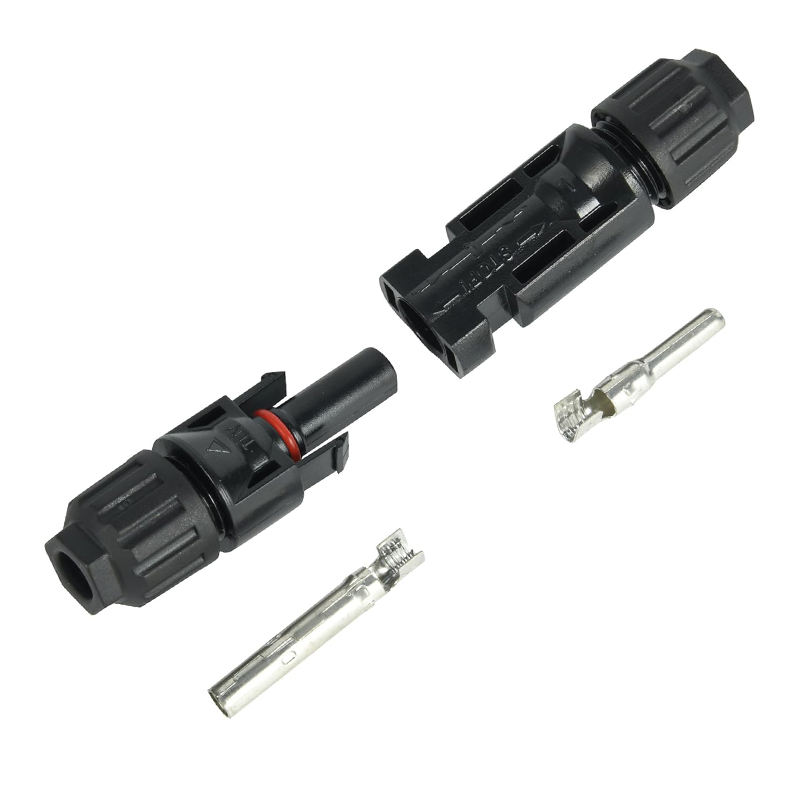

MC4 Solar Connector
Industry-standard DC connectors for secure solar panel interconnections. IP67 waterproof rating, UV resistant. Reliable performance in harsh outdoor conditions.
| Current Rating | 30A DC |
| Voltage Rating | 1000V DC |
| Contact Resistance | ≤0.5mΩ |
| Protection Class | IP67 |
| Operating Temperature | -40°C to +85°C |
| Certification | RCM, CEC, SAA |
| MOQ | 100 pairs |

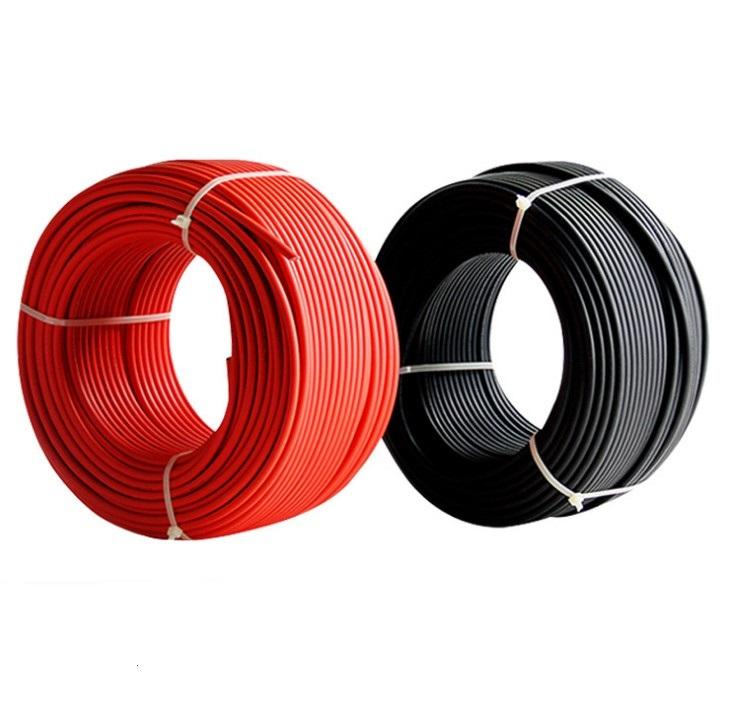

PV Cable / Solar Cable
Double insulated photovoltaic cables designed for solar power system connections. Excellent UV and weather resistance for long-term outdoor use.
| Cross Section | 4mm² / 6mm² |
| Voltage Rating | 1800V DC |
| Conductor | Tinned copper, stranded |
| Insulation | XLPE, cross-linked |
| Temperature Range | -40°C to +90°C |
| Certification | RCM, CEC, SAA |
| MOQ | 100m |

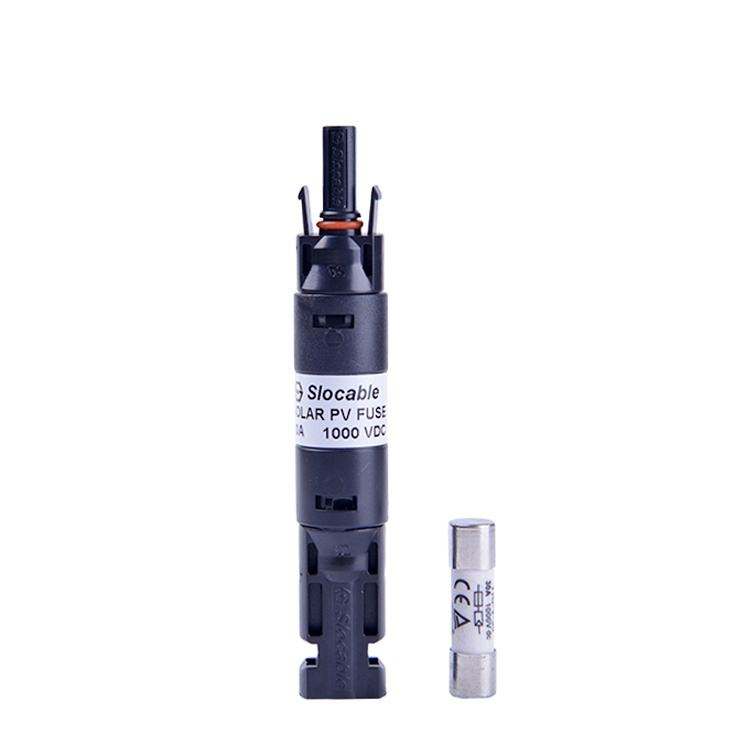

MC4 Fuse Holder / Photovoltaic Fuse
Inline fuse holders designed for solar array overcurrent protection. Integrated with MC4 connectors for easy installation and maintenance.
| Current Rating | 10A / 15A / 20A / 30A |
| Voltage Rating | 1000V DC |
| Fuse Size | 10x38mm |
| Protection | IP67 |
| Certification | RCM, CEC, SAA |
| MOQ | 50 pcs |

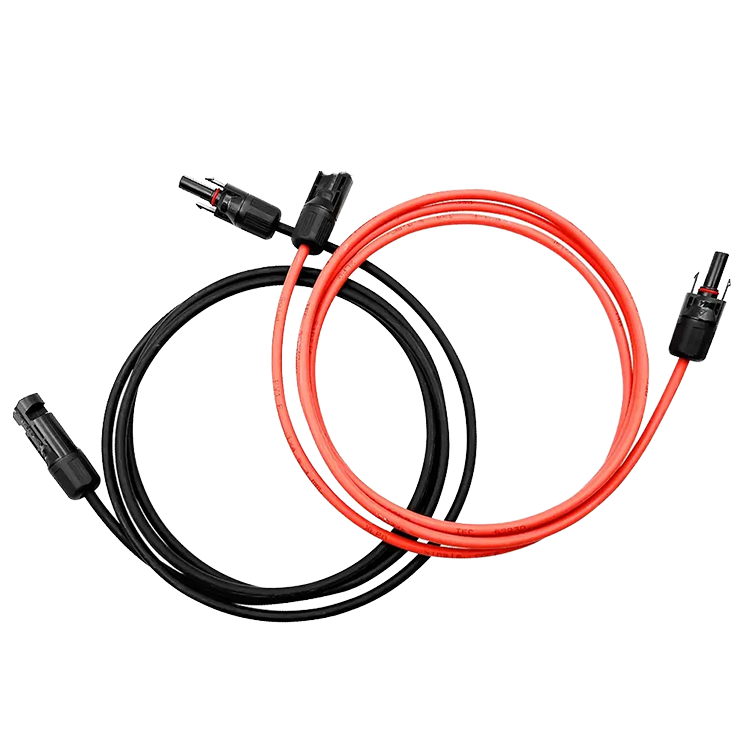

Solar Extension Cable
Pre-assembled MC4 extension cables for extending solar panel connections. Available in various lengths for flexible system configurations.
| Cable Cross Section | 4mm² / 6mm² |
| Voltage Rating | 1000V DC |
| Connector Type | MC4 Male to Female |
| Available Lengths | 1m / 2m / 3m / 5m / 10m |
| Certification | RCM, CEC, SAA |
| MOQ | 20 pcs |
Need Product Specifications?
Contact us for detailed datasheets and quotation.
